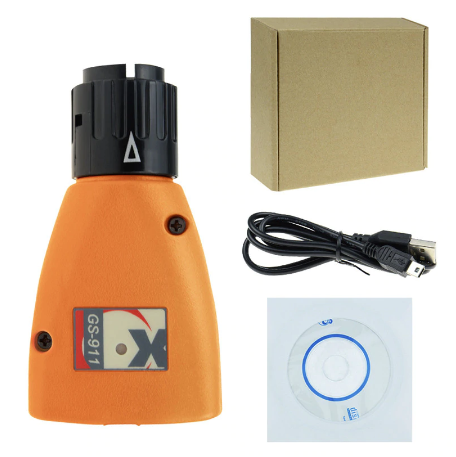

BMW Motorcycle GS-911 Diagnostic Scan Tool

  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
BMW Motorcycle GS-911 Diagnostic Scan Tool

Tap for gallery

€70.00


Product Information
Specification

****** Only for bikes prior to 2010 ******

You need a laptop running Windows to run the software. The unit is NOT wireless. It connects to your laptop via a USB cable (supplied).

***** You Must provide your proper email address when ordering this item to receive the software *****

GS-911 is a software and hardware combination that allows the BMW enthusiast the ability to communicate with the control modules on their bike.

Read Diagnostic Fault Codes

Shows ECU information. See hardware and software versions, manufacturing dates, and other manufacturer-related data.

Clears Diagnostic Fault Codes. Enables you to erase fault codes once the problem has been fixed.

Real-time Analog and Digital values for Engine control units. View and log the real-time values (dependent on controller)


Support Model List:
-------------------
R-Series:

HP2, HP2 Megamoto, R1200GS, R1200GS Adventure, R1200RT, R1200R, R1200ST, R1200S, R1200S HP2

R1200C, R1200CL

R1150GS, R1150GS Adventure, R1150RT, R1150R, R1150RS (single- and twin-spark on all models)

R1100S (single and twin-spark)

R850C, R850R, R850RT
========================================

K-Series:

K1300GT, K1300R, K1300S

K1200GT, K1200R, K1200R Sport, K1200S,

K1200LT, K1200GT (non-CAN), K1200RS
========================================

F-Series:

F800S, F800ST, F800GS, F800R

F650GS (800cc 2 cylinder)

F650CS, F650GS, F650GS for Dakar (single- and twin-spark on all models)
=======================================================================

G-Series:

G650Xchallenge, G650Xcountry, G650Xmoto

G650GS

G450X
========================================
C-Series:

C1, C1-200
========================================
S-Series:

S1000RR


Compatible System:

This depends on the bike model, but in general, the following are covered:

1.Engine controller (BMS-K, BMS-KP, BMS-C, BMS-CII, MA2.4, KMS-K16)

2.ABS (ABS-II, ABS-N, Integral-ABS, Integral-ABS-CAN, Integral-ABS2-CAN, ABS8, ABS8MOC)

3.Central Vehicle Electronics (ZFE-Basic (low, mid, high), ZFE-Low, ZFE-High(full, no-ESA, ESA-only))

4.Instrument cluster (Kombi-H, Kombi-L, Kombi-7x, Kombi-2D)

5.DWA (Anti-Theft Alarm system)

6.RDC (Tyre Pressure Control)



Requirements:

Laptop running Windows.

Product CodeBMW6QBOO14
ConditionNew
Weight0.25kg
