Delphi Ds150e diagnostic tool bluetooth - software 2017 Rev.3 vFiNaL CARS&TRUCK

  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
Delphi Ds150e diagnostic tool bluetooth - software 2017 Rev.3 vFiNaL CARS&TRUCK

Tap for gallery

€75.00

Maximum purchase quantity is 0.

Product Information
Specification

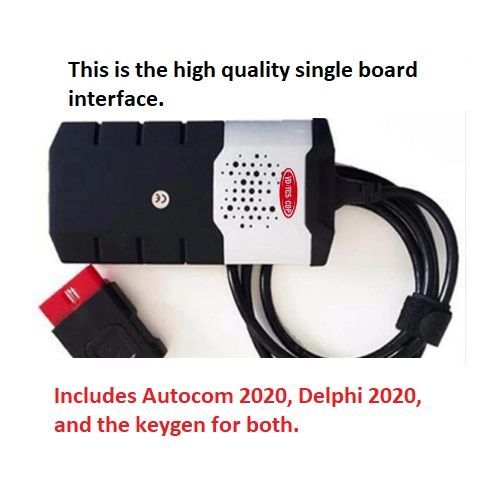

Delphi DS150E (New VCI (Vehicle Communication Interface)) 2017 Rev 3 Bluetooth (and USB) version.

This is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and newer vehicles.

Full installation instructions are included or I can install the software on your laptop for €25.00 extra (you come to me) or I can do it using Team Viewer for €15.00.

Features:
=========
With CARS, you can perform brand-specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands.
With TRUCKS, you can perform brand-specific diagnostics for light and heavy commercial vehicles, buses, and trailers from 1995 onwards. (For pre OBD2, extra cables will be needed). A total of 37 different brands.

The diagnostic program GENERIC is designed for legislation-based diagnostics, specially targeted for emission-related fault codes. GENERIC is included in CARS and TRUCKS packages.

Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out).

Multi-Functions:
================
FLIGHT RECORDER
With the flight recorder function, you can record parameters in real-time while you are driving a vehicle. During recording, you can, with the press of a button, highlight the specific error so that you can investigate the detected error at a later time. The VCI is equipped with built-in memory thus removing the need to bring a computer. A micro SD card is required for this function and is NOT included in the package.

MULTI-COLORS INDICATOR
With the multi-colors indicator on the VCI, you have full control of the diagnostic process. Different colors and sound communicate the status and the placement of the indicator allows you to see it from afar. For example, if the indicator alternates between blue and green the VCI is communicating with the vehicle.

CONNECTOR WITH LED
To help you locate the OBD2 connector in the vehicle eg located in a dark and inaccessible place, there is an LED on the 16-pin connector to assist. The location and the design allow the light to function even when using the adaptor cable for vehicles without a 16-pin diagnostic socket.

VOLTAGE CHECK
When the VCI is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjust itself to the vehicle's voltage level of 12 or 24 volts. If the voltage gets too high or too low, it will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.

CHASSIS NUMBER VIN
In the CARS software, there is a smart function that allows you to read the chassis number from the vehicle that you are diagnosing. This ensures that the right model and year are selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.

ISS
Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyze the results further on.

ISI
Intelligent System Identification (ISI) identifies and automatically selects the type of controller fitted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.

REPORT FUNCTION
Under this function tab, you can see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.

OBD-FUNCTIONS
The VCI is equipped with unique multiplexer technology which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.

UNIVERSAL
For most OBD functions, such as adjustments and programming, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step-by-step information about prerequisites, preparation, and implementation of various functions; making even the most complex function simple to perform.

Package list
1 x Delphi DS150e diagnostic unit.
1 x Delphi OBD2 cable (VCI to vehicle).
1 x USB cable (VCI to laptop).
1 x software download link.

Requirements
Windows XP, Win 7, Win 8 (32 bit and 64 bit), Win 10 32 bit is more stable, Win 10 64 bit system depends on the computer configuration.

Product CodeDELMWEAU12
ConditionNew
Weight0.51kg
